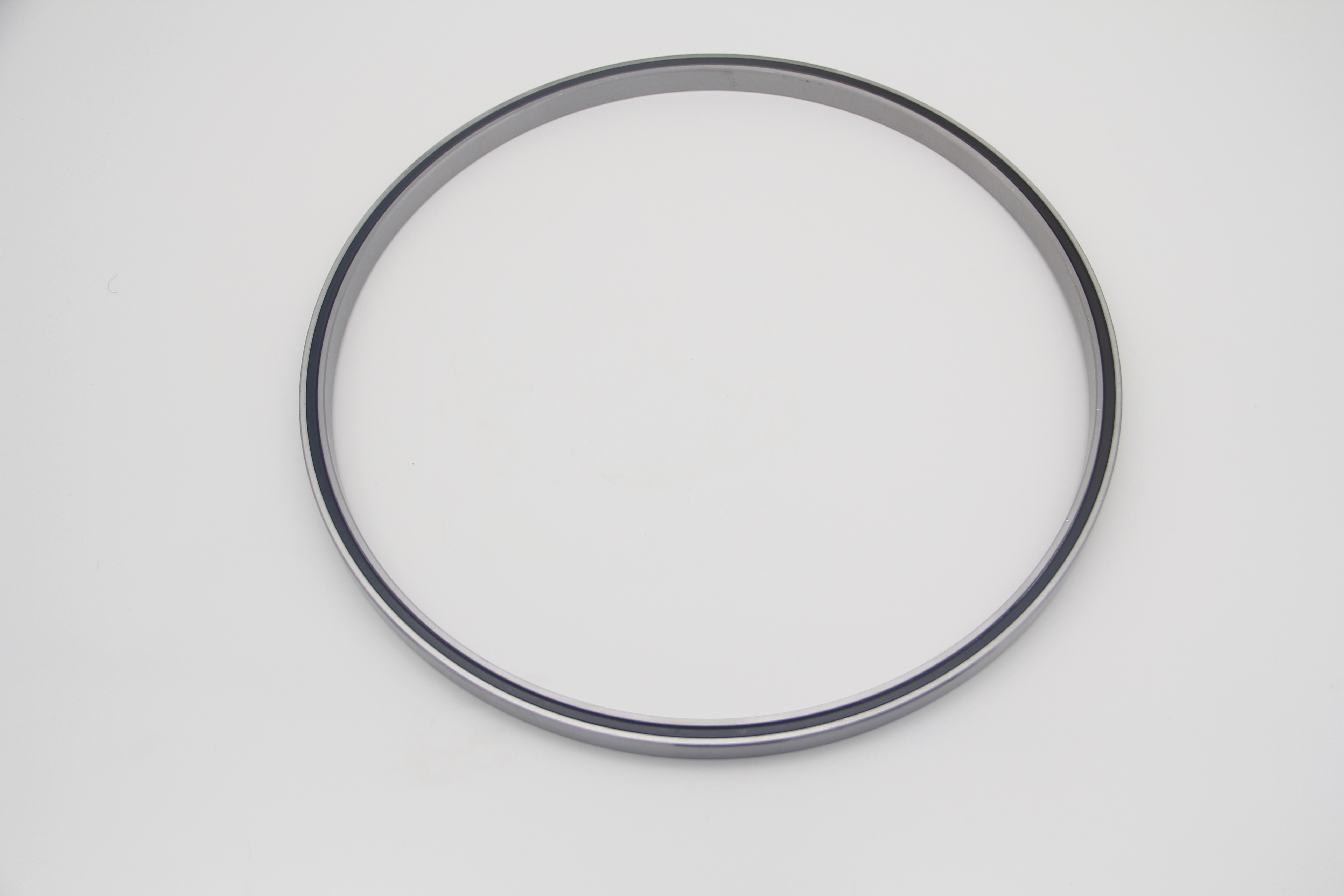

Sealed X Type

密封 X 型薄壁轴承

按系列查看 JHA、JA、JB、JU、JG 的型号和尺寸。

查看型号返回薄壁轴承目录

Series Map

系列入口

JHA系列JHA10XL0 到 JHA17XL0

JA系列JA020XP0 到 JA065XP0

JB系列JB020XP0 到 *JB065XP0

JU系列JU040XP0 到 *JU120XP0

JG系列*JG070XP0 到 *JG400XP0

Dimension

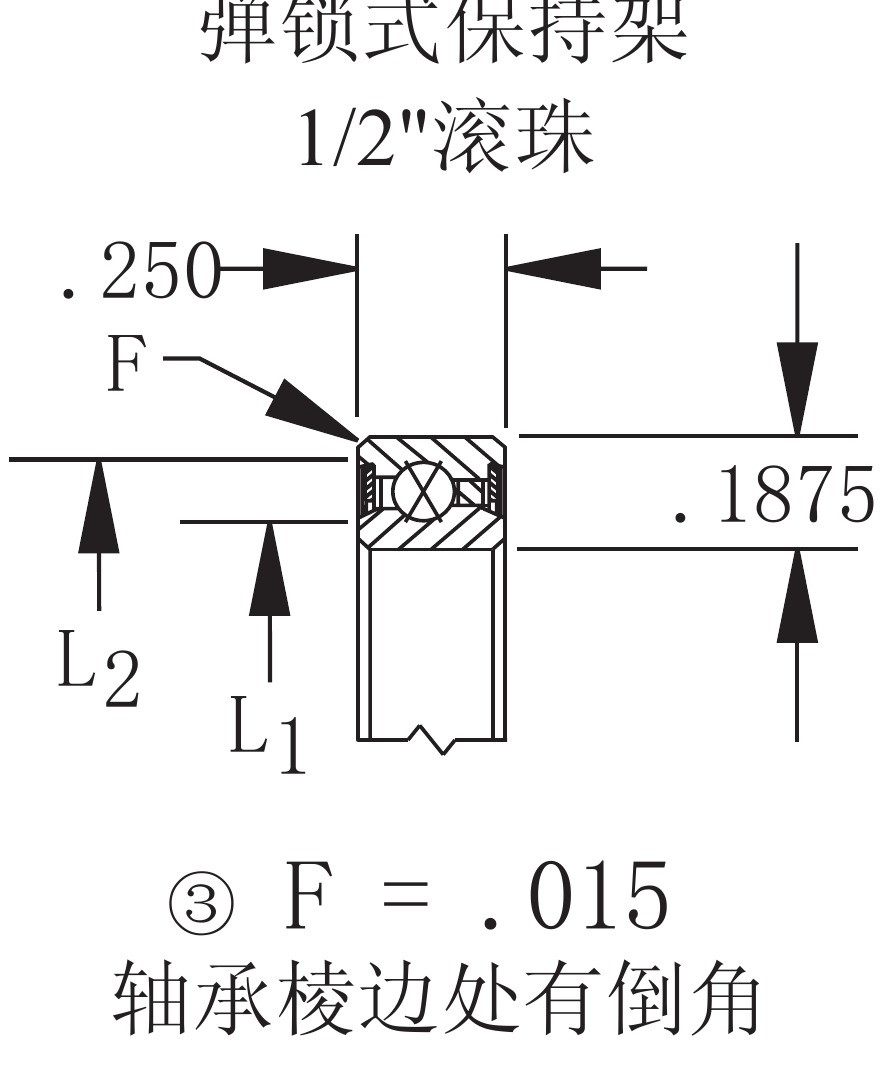

尺寸示意图

Model Tables

型号参数

以下数据来自 Kaydon REALI-SLIM 样本，已换算为公制显示。

JHA系列（双侧密封）

型号	孔径 (mm)	外径 (mm)	L1 (mm)	L2 (mm)	径向静载荷 (N)	径向动载荷 (N)	轴向静载荷 (N)	轴向动载荷 (N)	力矩静载荷 (N·m)	力矩动载荷 (N·m)	极限转速 (RPM)	空载极限转矩 (N·m)	重量 (kg)
JHA10XL0	25.4	34.92	28.14	32.36	1,290	1,099	3,247	1,646	19.207	12.428	3000	0.035	0.016
JHA15XL0	38.1	47.62	40.84	45.06	1,779	1,317	4,448	2,046	38.415	21.128	2000	0.035	0.024
JHA17XL0	44.45	53.97	47.19	51.41	2,046	1,419	5,071	2,224	49.713	26.212	1710	0.042	0.027

JA系列（双侧密封）

型号	孔径 (mm)	外径 (mm)	L1 (mm)	L2 (mm)	径向静载荷 (N)	径向动载荷 (N)	轴向静载荷 (N)	轴向动载荷 (N)	力矩静载荷 (N·m)	力矩动载荷 (N·m)	极限转速 (RPM)	空载极限转矩 (N·m)	重量 (kg)
JA020XP0	50.8	63.5	54.56	59.84	3,025	2,286	7,606	3,514	86.998	49.035	1500	0.042	0.045
JA025XP0	63.5	76.2	67.26	72.54	3,692	2,593	9,297	4,048	129.933	67.904	1200	0.056	0.054
JA030XP0	76.2	88.9	79.96	85.24	4,404	2,860	10,987	4,493	180.776	88.693	830	0.085	0.064
JA035XP0	88.9	101.6	92.66	97.94	5,071	3,118	12,677	4,938	240.658	111.403	710	0.113	0.077
JA040XP0	101.6	114.3	105.36	110.64	5,738	3,363	14,323	5,382	309.578	136.147	620	0.141	0.086
JA042XP0	107.95	120.65	111.71	116.99	6,094	3,483	15,168	5,605	346.863	149.253	580	0.169	0.091
JA045XP0	114.3	127	118.06	123.34	6,405	3,599	16,014	5,827	386.408	162.811	550	0.198	0.095
*JA047XP0	120.65	133.35	124.41	129.69	6,761	3,710	16,859	6,005	428.213	176.821	520	0.226	0.1
JA050XP0	127	139.7	130.76	136.04	7,073	3,821	17,704	6,228	472.277	191.283	500	0.254	0.104
*JA055XP0	139.7	152.4	143.46	148.74	7,784	4,039	19,394	6,583	567.184	221.337	450	0.311	0.113
JA060XP0	152.4	165.1	156.16	161.44	8,452	4,248	21,085	6,984	670	253.086	330	0.367	0.127
JA065XP0	165.1	177.8	168.86	174.14	9,119	4,453	22,775	7,340	780.725	286.417	300	0.431	0.136

JB系列（双侧密封）

型号	孔径 (mm)	外径 (mm)	L1 (mm)	L2 (mm)	径向静载荷 (N)	径向动载荷 (N)	轴向静载荷 (N)	轴向动载荷 (N)	力矩静载荷 (N·m)	力矩动载荷 (N·m)	极限转速 (RPM)	空载极限转矩 (N·m)	重量 (kg)
JB020XP0	50.8	66.67	55.85	61.59	4,137	3,372	10,409	5,026	122.024	74.344	1500	0.042	0.068
JB025XP0	63.5	79.38	68.55	74.29	5,071	3,772	12,633	5,738	180.776	101.121	1200	0.056	0.086
JB030XP0	76.2	92.07	81.25	86.99	5,961	4,150	14,902	6,405	250.826	130.949	1000	0.085	0.1
JB035XP0	88.9	104.77	93.95	99.69	6,850	4,510	17,170	7,073	332.175	163.828	710	0.113	0.122
JB040XP0	101.6	117.47	106.65	112.39	7,784	4,853	19,439	7,651	425.953	199.305	620	0.141	0.136
JB042XP0	107.95	123.82	113	118.74	8,140	4,982	20,328	7,918	471.147	216.592	590	0.169	0.141
JB045XP0	114.3	130.17	119.35	125.09	8,674	5,182	21,707	8,229	529.899	237.607	550	0.198	0.154
*JB047XP0	120.65	136.53	125.7	131.44	9,030	5,307	22,597	8,452	580.742	255.911	520	0.226	0.159
*JB050XP0	127	142.88	132.05	137.79	9,564	5,498	23,931	8,807	646.273	278.282	500	0.254	0.168
*JB055XP0	139.7	155.57	144.75	150.49	10,498	5,800	26,200	9,341	773.946	321.329	450	0.311	0.181
*JB060XP0	152.4	168.27	157.45	163.19	11,387	6,099	28,469	9,875	912.917	366.862	410	0.367	0.2
*JB065XP0	165.1	180.97	170.15	175.89	12,277	6,383	30,737	10,409	1063.187	414.428	380	0.431	0.213

JU系列（双侧密封）

型号	孔径 (mm)	外径 (mm)	L1 (mm)	L2 (mm)	径向静载荷 (N)	径向动载荷 (N)	轴向静载荷 (N)	轴向动载荷 (N)	力矩静载荷 (N·m)	力矩动载荷 (N·m)	极限转速 (RPM)	空载极限转矩 (N·m)	重量 (kg)
JU040XP0	101.6	120.65	105.41	115.49	9,341	6,303	23,398	9,831	519.73	262.803	620	0.02	0.249
JU042XP0	107.95	127	111.76	121.84	9,875	6,512	24,732	10,186	580.742	287.094	590	0.023	0.263
JU045XP0	114.3	133.35	118.11	128.19	10,409	6,717	26,067	10,587	645.143	312.064	550	0.025	0.277
JU047XP0	120.65	139.7	124.46	134.49	10,943	6,921	27,401	10,943	714.064	337.938	520	0.028	0.295
JU050XP0	127	146.05	130.81	140.84	11,521	7,117	28,736	11,298	785.245	364.489	500	0.03	0.308
JU055XP0	139.7	158.75	143.51	153.47	12,588	7,504	31,404	11,966	937.774	419.965	450	0.036	0.336
JU060XP0	152.4	171.45	156.21	166.17	13,656	7,873	34,073	12,633	1103.862	478.378	410	0.043	0.367
JU065XP0	165.1	184.15	168.91	178.74	14,724	8,234	36,787	13,300	1284.638	539.503	380	0.049	0.395
JU070XP0	177.8	196.85	181.61	191.44	15,791	8,590	39,456	13,923	1477.842	603.452	350	0.057	0.422
JU075XP0	190.5	209.55	194.31	204.14	16,859	8,928	42,125	14,546	1684.604	670	330	0.065	0.449
JU080XP0	203.2	222.25	207.01	216.84	17,926	9,261	44,794	15,168	1906.054	739.147	310	0.073	0.481
JU090XP0	228.6	247.65	232.41	242.19	20,061	9,902	50,131	16,325	2387.369	884.671	220	0.092	0.535
JU100XP0	254	273.05	257.81	267.59	22,197	10,516	55,469	17,482	2924.047	1039.573	200	16.0	1.31
JU110XP0	279.4	298.45	283.21	292.99	24,332	11,103	60,852	18,594	3514.958	1203.401	180	19.2	1.43

JG系列（双侧密封）

型号	孔径 (mm)	外径 (mm)	L1 (mm)	L2 (mm)	径向静载荷 (N)	径向动载荷 (N)	轴向静载荷 (N)	轴向动载荷 (N)	力矩静载荷 (N·m)	力矩动载荷 (N·m)	极限转速 (RPM)	空载极限转矩 (N·m)	重量 (kg)
*JG070XP0	177.8	228.6	191.87	218.49	58,405	45,407	146,035	68,503	5935.093	3461.403	240	0.12	2.631
*JG075XP0	190.5	241.3	204.57	231.19	60,852	46,306	152,129	70,371	6568.938	3750.644	225	0.134	2.767
*JG080XP0	203.2	254	217.27	243.89	65,700	48,406	164,317	74,063	7511.231	4151.402	210	0.148	2.948
*JG090XP0	228.6	279.4	242.67	269.29	73,040	51,270	182,555	79,490	9273.795	4885.464	190	0.184	3.266
*JG100XP0	254	304.8	268.07	294.69	80,335	54,033	200,793	84,694	11221.653	5663.252	175	0.226	3.583
*JG110XP0	279.4	330.2	293.47	320.09	87,630	56,666	219,075	89,765	13354.807	6479.341	160	0.268	3.901
*JG120XP0	304.8	355.6	318.87	345.49	94,925	59,228	237,313	94,658	15670.996	7336.67	140	0.311	4.218
*JG140XP0	355.6	406.4	369.67	396.29	109,515	64,072	273,833	153,063	20868.298	9158.098	125	0.417	4.899
*JG160XP0	406.4	457.2	420.47	447.09	124,150	68,614	310,352	113,207	26800.002	11114.657	110	0.537	5.579
*JG180XP0	457.2	508	471.27	497.89	138,740	72,889	346,872	121,926	33477.405	13195.837	100	0.671	6.214
*JG200XP0	508	558.8	522.07	548.69	153,330	76,923	383,348	130,333	40900.508	15392.827	90	0.812	7.167
*JG220XP0	558.8	609.6	572.87	599.49	167,920	80,744	419,868	138,473	49058.013	17696.249	80	0.974	7.62
*JG250XP0	635	685.8	649.07	675.69	189,850	86,118	474,625	150,261	62695.282	21335.829	75	1.25	8.845
*JG300XP0	762	812.8	776.07	802.69	226,370	94,302	565,814	168,943	89122.433	27855.393	60	1.78	10.569
*JG350XP0	889	939.8	903.07	929.69	262,890	101,620	657,002	186,692	120215.858	34858.87	55	2.394	12.292
*JG400XP0	1016	1066.8	1030.07	1056.69	281,617	108,234	748,636	203,595	155919.064	42285.25	50	3.107	13.971
